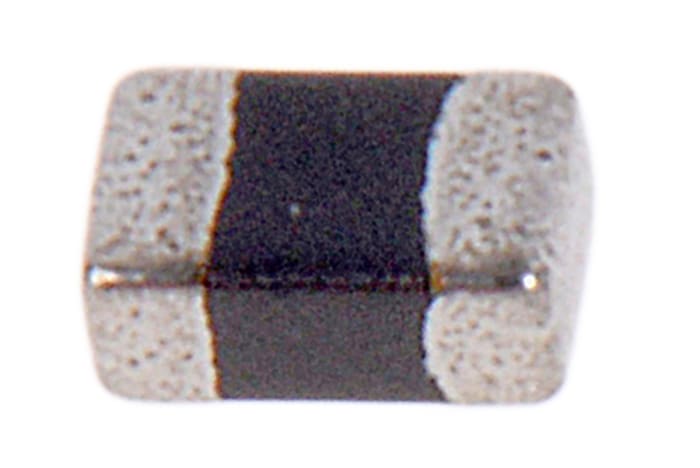

Wurth Elektronik Ferrite Bead (EMI Suppression), 2 x 1.2 x 0.9mm (0805 (2012M)), 600Ω impedance at 100 MHz
Technical Document
Specifications
Brand
Wurth ElektronikPackage Type
0805 (2012M)
Impedance at 100 MHz
600Ω
Current Rating
500mA
Type
EMI Suppression
Dimensions
2 x 1.2 x 0.9mm
Length
2mm
Depth
1.2mm
Maximum DC Resistance
300mΩ
Height
0.9mm
Material
Ferrite
Series
WE-CBF
Application
Suppression Components
Country of Origin
Taiwan, Province Of China
Product details
High-Speed Multilayer Ferrite SMD - WE-CBF Series
Excellent anti-EMI properties and low DC resistance
Placed very close next to the interference source even with smallest size 0402, maximum impedance 1000Ω
Reliable Ni-Sn electrodes
Ideal for data line filtering and voltage de-coupling
High rated current up to 6A
Recommended for reflow soldering
Applications:
High Speed: USB 2.0, IEEE 1394, LVDS
Wide Band: Control signals, RS232, RS422, DC/DC converter, etc.
High Current: Current supply, DC/DC converter etc.
Ideate. Create. Collaborate
JOIN FOR FREE
No hidden fees!
- Download and use our DesignSpark software for your PCB and 3D Mechanical designs
- View and contribute website content and forums
- Download 3D Models, Schematics and Footprints from more than a million products
€ 1.40
€ 0.14 Each (In a Bag of 10) (ex VAT)
Standard
10
€ 1.40
€ 0.14 Each (In a Bag of 10) (ex VAT)
Stock information temporarily unavailable.
Standard
10
Stock information temporarily unavailable.
| Quantity | Unit price | Per |
|---|---|---|
| 10 - 90 | € 0.14 | € 1.40 |
| 100 - 490 | € 0.122 | € 1.22 |
| 500 - 990 | € 0.117 | € 1.17 |
| 1000 - 3990 | € 0.113 | € 1.12 |
| 4000+ | € 0.092 | € 0.92 |
