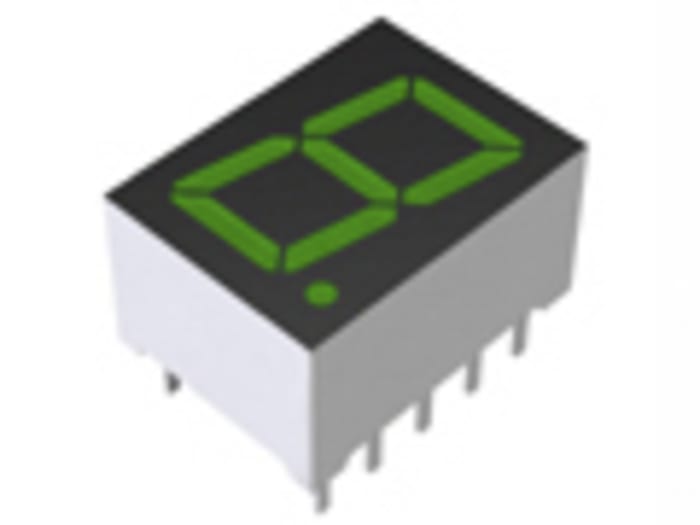

LAP-401MD ROHM 7-Segment LED Display, CA Green 100 mcd RH DP 10.2mm

RS Stock No.: 363-566Brand: ROHMManufacturers Part No.: LAP-401MD
brand-logo
View all in LED Displays

Technical Document

Specifications

Brand

ROHM

Display Type

7-Segment

Number of Characters

1

LED Colours

Green

Number Of Segments

7

Dominant Wavelength

572 nm

Character Width

5.6mm

Character Height

10.2mm

Common Connection

Anode

Mounting Type

Through Hole

External Depth

7mm

External Dimensions

13 x 9.6 x 7mm

External Height

13mm

External Width

9.6mm

Luminous Intensity

100 mcd

Colour Of Face

Black

Forward Voltage

1.9 V

Power Dissipation

56mW

Operating Temperature Range

-25 → +75°C

Forward Current

20mA

Maximum Operating Temperature

+75°C

Decimal Orientation

Right Side

Minimum Operating Temperature

-25°C

Product details

7-Segment LED, LAP401 Series, Rohm

7-Sement Displays
