Recom LED Driver, 39.2W Output, 700mA Output, Constant Current Dimmable
Technical Document
Specifications
Brand
RecomMaximum Output Power
39.2W
Output Current
700mA
Dimmable
Yes
Input Voltage
9 → 60 V dc
Operation
Constant Current
LED Driver Type
LED Driver
Dimming Operation
0 to 5 V dc, PWM
AC or DC Input Voltage
DC
Current Rating
0 → 700mA
Series
RCD-48
Voltage Rating
60V dc
Primary Type
DC-DC
Country of Origin
Taiwan, Province Of China
Product details

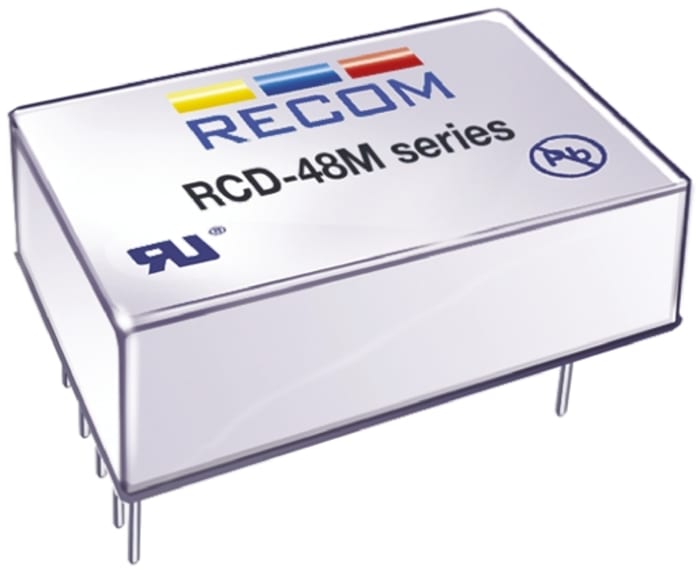

Recom Constant Current Step Down LED Driver - RCD-48 Series
RCD-48 series constant current step down LED driver available with PCB or wired (stock numbers 757-7257 and 757-7251) mounting options. The PCB mount versions of these RCD-48 series constant current LED drivers have both PWM digital and analogue dimming which are independent and can be combined. Stock number 757-7254 has a metal case. Typical applications for these RCD-48 series constant current LED drivers include automotive lighting, general illumination and industrial lighting.
PCB through hole mount or wired versions
Digital PMW and analogue dimming
Wide input voltage range of 9-60 Vdc
High efficiency of 96%
Open circuit protected
Auxiliary voltage output
Approvals
cULus
Standards
EN-60950-1, UL-60950-1
LED Drivers
Ideate. Create. Collaborate
JOIN FOR FREE
No hidden fees!
- Download and use our DesignSpark software for your PCB and 3D Mechanical designs
- View and contribute website content and forums
- Download 3D Models, Schematics and Footprints from more than a million products
Stock information temporarily unavailable.
Please check again later.
€ 21.72
€ 21.72 Each (ex VAT)
Standard
1
€ 21.72
€ 21.72 Each (ex VAT)
Standard
1
Buy in bulk
| quantity | Unit price |
|---|---|
| 1 - 4 | € 21.72 |
| 5 - 9 | € 20.85 |
| 10 - 24 | € 20.42 |
| 25 - 49 | € 19.99 |
| 50+ | € 19.57 |
