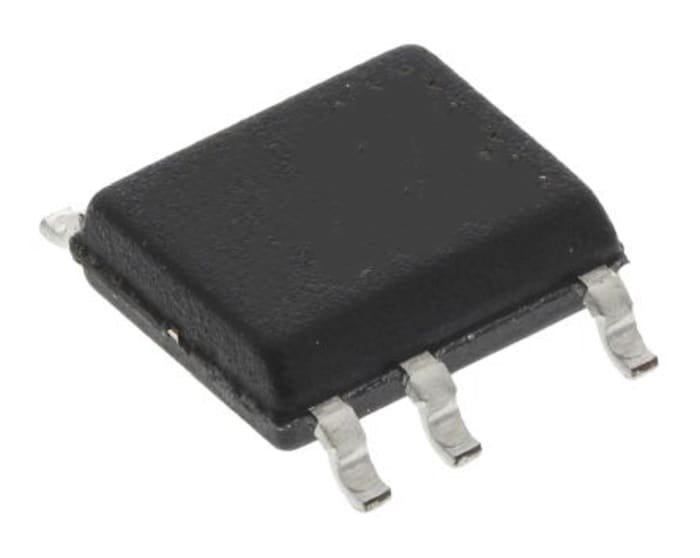

onsemi NCP1239KD65R2G, PWM Controller, 35 V, 65 kHz 7-Pin, SOIC
Technical Document
Specifications
Brand
onsemiMaximum Switching Frequency
65 kHz
Output Voltage
16 V
Output Current
500 mA, 500 mA
Number of Outputs
1
Control Method
Current
Mounting Type
Surface Mount
Fall Time
30ns
Package Type
SOIC
Rise Time
40ns
Pin Count
7
Topology
Flyback
Maximum Duty Cycle
84%
Dimensions
5 x 4 x 1.5mm
PWM Controller Type
Current Mode
Length
5mm
Width
4mm
Height
1.5mm
Maximum Operating Supply Voltage
35 V
Maximum Operating Temperature
+150 °C
Country of Origin
Philippines
