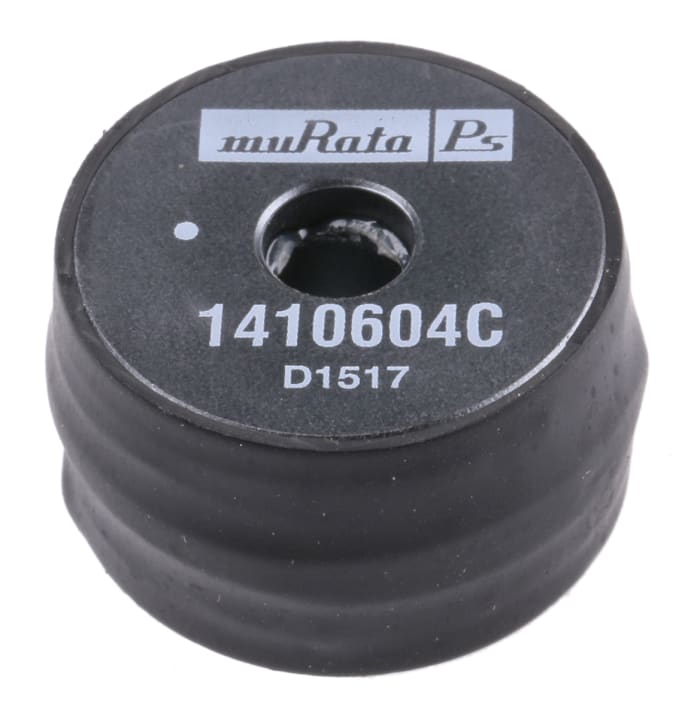

Murata 10 mH ±10% Leaded Inductor, Max SRF:200kHz, Q:48, 600mA Idc, 2294mΩ Rdc, 1400
Technical Document
Specifications
Inductance
10 mH
Maximum dc Current
600mA
Mounting Type
Radial
Maximum DC Resistance
2294mΩ
Tolerance
±10%
Length
32.4mm
Depth
31.3mm
Height
23.3mm
Dimensions
32.4 x 31.3 x 23.3mm
Maximum Self Resonant Frequency
200kHz
Lead Pitch
28.5mm
Series
1400
Minimum Quality Factor
48
Lead Diameter
0.54mm
Maximum Operating Temperature
+85°C
Minimum Operating Temperature
-40°C
Terminal Type
Through Hole
Country of Origin
China
Product details
Murata 1400 Series High Current Radial Inductors
Designed for use in power line applications such as switching regulators, filters and suppression circuits
Constructed from high saturation flux density material enabling use in high current applications
Suitable for PCB or chassis mounting using a non-magnetic fastener via the central fixing hole
Terminated with easy-strip pre-tinned enamelled copper leads
Lead length 10mm
Operating temperature: -40 → +85°C
Inductance Tolerance: ±10%
Murata Leaded Inductors (Chokes)
Ideate. Create. Collaborate
JOIN FOR FREE
No hidden fees!
- Download and use our DesignSpark software for your PCB and 3D Mechanical designs
- View and contribute website content and forums
- Download 3D Models, Schematics and Footprints from more than a million products
€ 3.92
€ 3.92 Each (ex VAT)
Standard
1
€ 3.92
€ 3.92 Each (ex VAT)
Standard
1
Stock information temporarily unavailable.
Please check again later.
| quantity | Unit price |
|---|---|
| 1 - 7 | € 3.92 |
| 8+ | € 3.74 |
