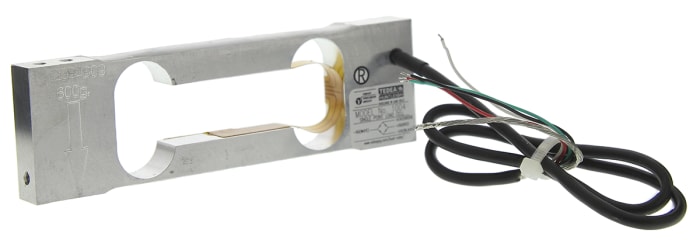

Tedea Huntleigh Single Point Load Cell, 0.3kg Range, Compression Measure
Technical Document
Specifications
Brand
Tedea HuntleighForce Measured
Compression
Force/ Load Measurement Range
0.3kg
Sensor Type
Single Point
Terminal Type
Wire Lead
IP Rating
IP66
Housing Material
Aluminium
Length
33mm
Depth
10mm
Minimum Operating Temperature
+5°C
Maximum Operating Temperature
+40°C
Dimensions
110 mm
Country of Origin
China
Product details
Low Capacity Single Point Aluminium
Output impendence 350Ω
Safe overload 150% rated capacity
Ultimate overload 250% rated capacity
Cable type 4 Wire; 28 AWG; Spiral Shield; PVC Jacket
Low capacity, high precision, aluminium, single point load cell. A special humidity-resistant protective coating ensures long-term reliability.
200 x 200mm maximum platform size
Up to 30 000 weighing increments
Dimensions 110x33x10mm
Applications: Include Low level force measurement, postal, counting or jewellery scales, analytical balances.
Stock information temporarily unavailable.
Please check again later.
€ 75.82
Each (ex VAT)
1
€ 75.82
Each (ex VAT)
1
