Recom Embedded Switch Mode Power Supply (SMPS), RAC03-24SCR/277, 24V dc, 125mA, 3W, 1 Output, 85 → 305V ac Input
Technical Document
Specifications
Brand
RecomOutput Voltage
24V dc
Output Current
125mA
Power Rating
3W
Number of Outputs
1
Input Voltage
85 → 305V ac
Mounting Type
PCB Mount
Package Type
Encapsulated
Width
50.3mm
Depth
11.1mm
Efficiency
78%
Minimum Temperature
-25°C
Weight
41g
Maximum Temperature
+85°C
Country of Origin
Taiwan, Province Of China
Product details

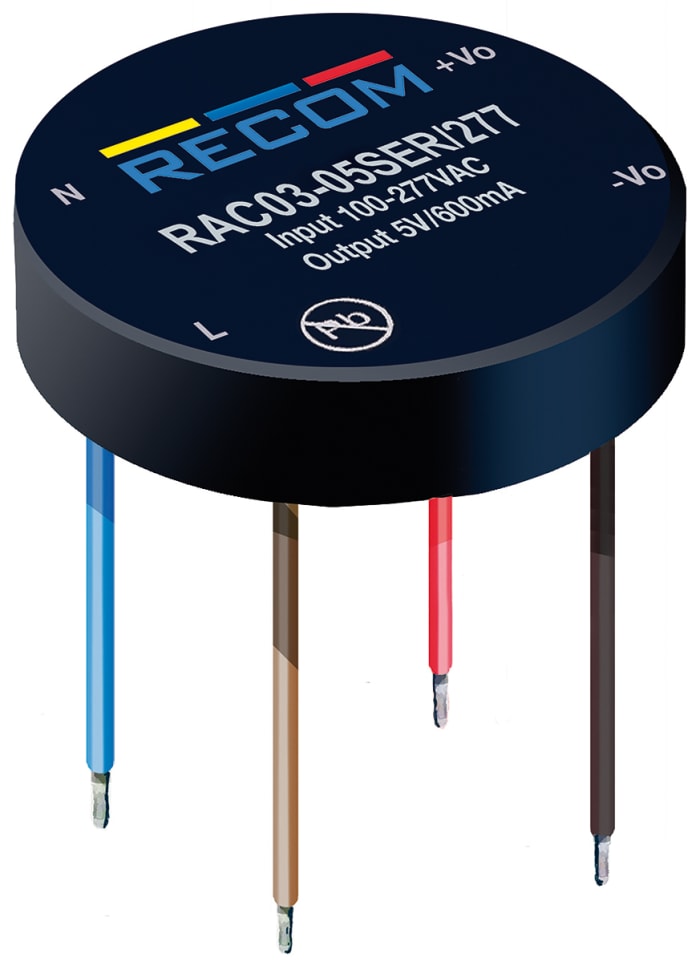

Recom 3W, PCB Mount, Encapsulated, Switch Mode AC-DC Power Supply - RAC03-SCR Se
The Recom RAC03-SCR/277 is a series of 3W, single output encapsulated Power Supplies. This Regulated AC/DC converter offers Constant Voltage and Constant Current outputs and High efficiency of up to 78%. This AC/DC Converter has very low Standby Power consumption. The Recom RAC03-SCR/277 comes with a three year warranty.
Constant Voltage / Constant Current output
High efficiency up to 78%
Isolated Output 3kVac / 1 minute
Continuous Short circuit protection
Meets EN55022 and FCC Class B
Ultra Low Standby Power consumption
Standards
UL-60590-1
P.O.A.
1
P.O.A.
1
Stock information temporarily unavailable.
Please check again later.
